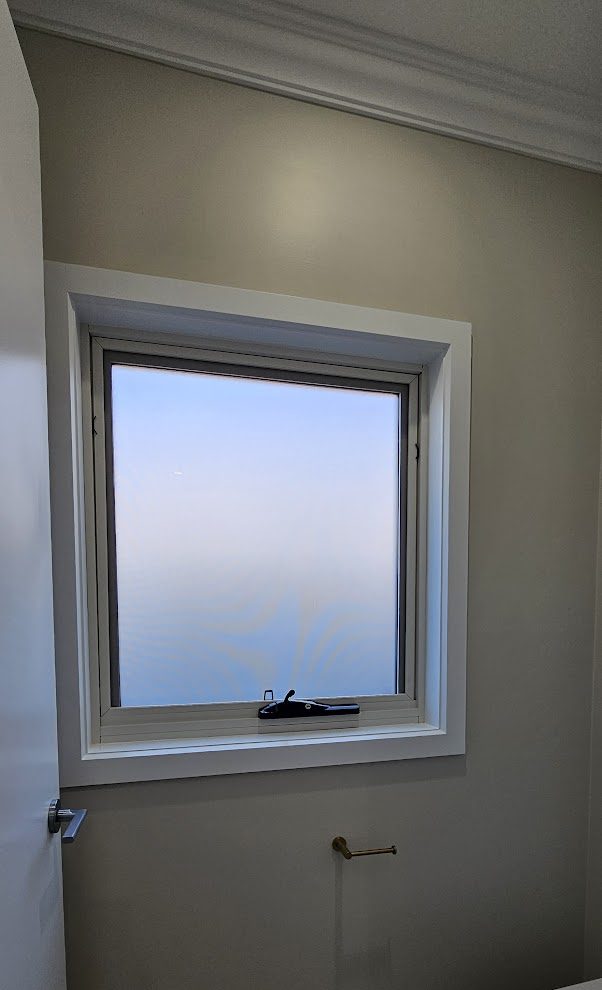

  • Residential Awning Window installation
  • a child extending his hands in front of an installed residential awning window
Vantage Windows and Doors

High Performance Awning Window

A strong and stylish aluminium awning window with 75mm framing, ideal for larger openings and improved energy efficiency in residential homes.

  • AS2047 Testing Certified

Request free quote Download brochure
View WERS Ratings here View more information
Share this product

Details

key features

Material comparison

why choose dlg

request for quote

Details

The High Performance Awning Window by DLG Aluminium & Glazing is designed for residential applications where strength and energy efficiency matter. With a robust 75mm frame and capacity for larger glass panels, it offers a durable and modern solution for homes.

  • Sturdy 75mm framing for increased structural integrity

  • Ideal for larger openings in residential settings

  • Accommodates up to 24mm insulated glazing for enhanced thermal performance

  • Compatible with Truth™ Performance Side Latches for secure operation on oversized panels

Specifications
  • Maximum Panel Height*

    Various

  • Maximum Panel Width*

    Various

  • Maximum Glass Thickness

    ≤ 20mm

  • Uw Range

    1.6 – 6.6

  • SHGC Range

    0.21 – 0.74

*Maximum Panel Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Standard Colours
Pearl White
APO Grey
Anotec Natural Pearl
Custom Black
Monument
Woodland Grey
Surfmist
Paperbark
Dune
Download colour guide
  • Strong 75mm Framing

    The 75mm aluminium frame adds strength and allows larger sashes for bigger openings.

  • Excellent Weather Performance

    A 600Pa water resistance rating makes it suitable for most exposed locations.

  • Hinge Hood Protection

    A continuous hinge hood protects the top of the sash from water getting in.

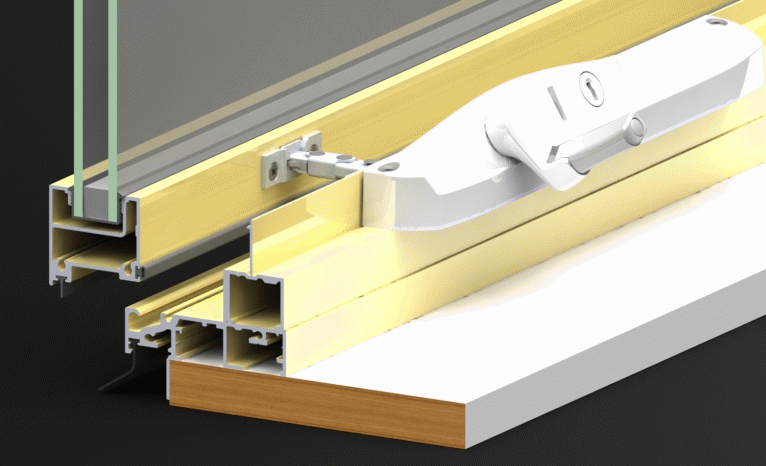

  • Locking Options

    Choose from a range of locking options, including Truth™ Performance Side Latches for oversized sashes.

  • Strong 75mm Framing

    The 75mm aluminium frame adds strength and allows larger sashes for bigger openings.

  • Excellent Weather Performance

    A 600Pa water resistance rating makes it suitable for most exposed locations.

  • Hinge Hood Protection

    A continuous hinge hood protects the top of the sash from water getting in.

  • Locking Options

    Choose from a range of locking options, including Truth™ Performance Side Latches for oversized sashes.

Request free quote Download brochure

Take a look at some of the unique features of this product

Show more Show more
Heavy Duty Winders

Heavy duty chain winders are fitted to reinforced sections for long term durability.

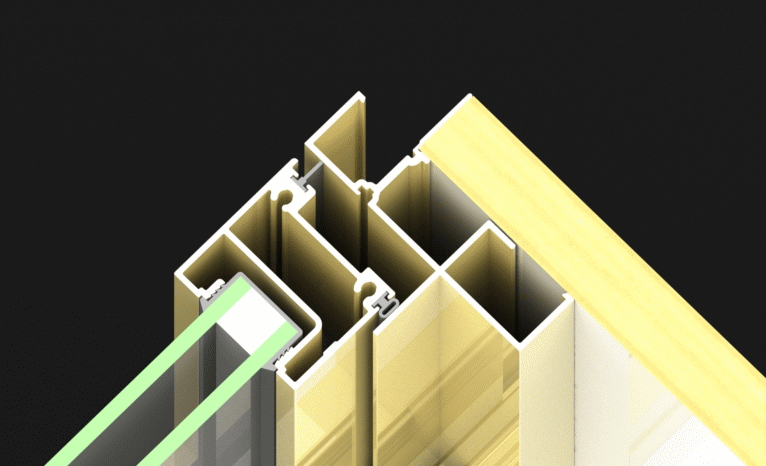

Wide Glazing Pocket

75mm frames allow wrap around sashes to accept 18-20mm IGUs for excellent thermal performance.

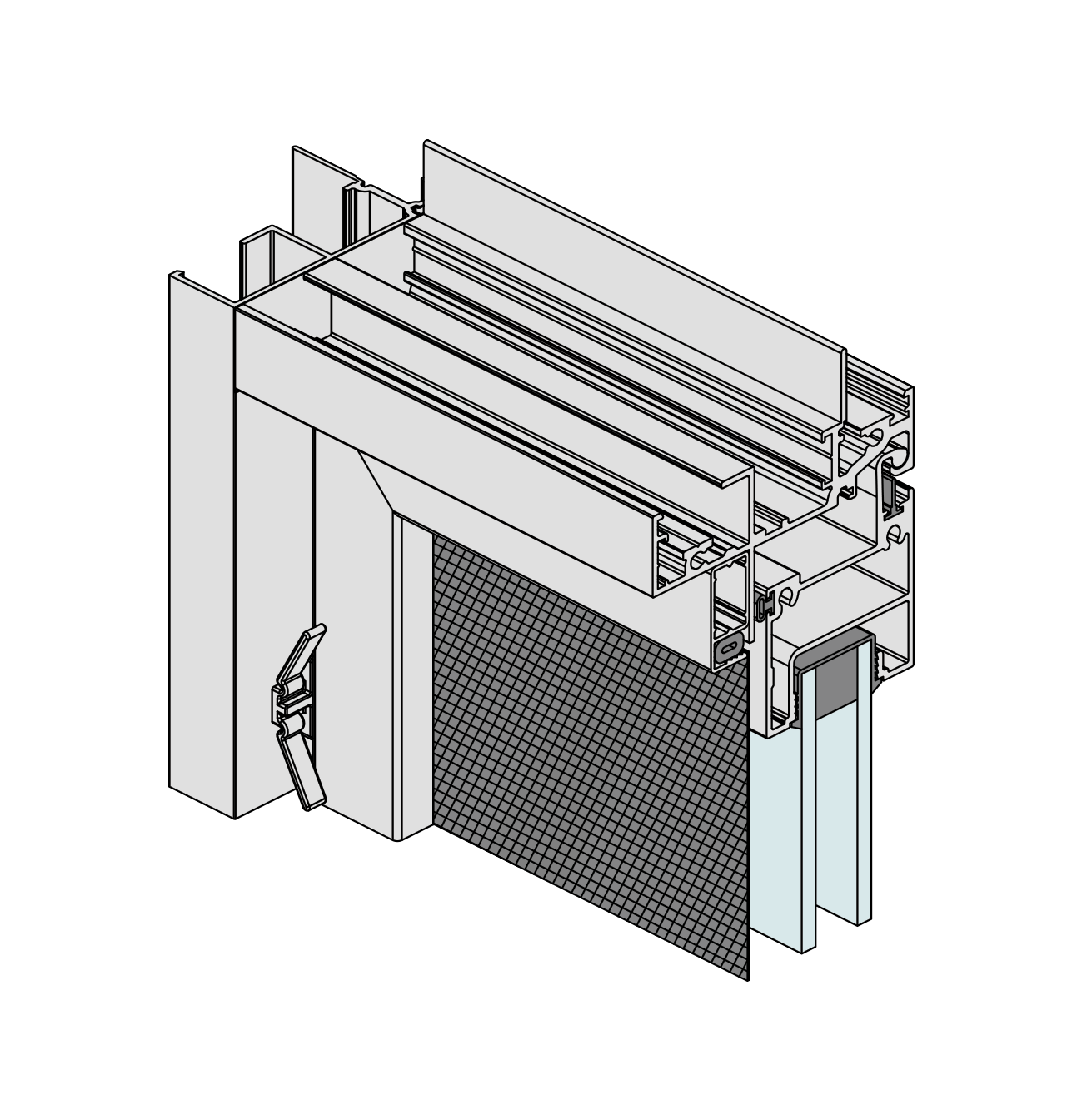

Easily Accepts Screens

Fly screens can be easily fitted with custom nylon clips located on the jambs/mullions.

Aluminium vs. uPVC vs. Timber

Choosing the right material for your windows is crucial for durability, maintenance, and aesthetics. Here’s a comparison to help you decide:

Aluminium
  • Durability

    High; resistant to warping and corrosion

  • Maintenance

    Low; requires minimal upkeep

  • Energy Efficiency

    High with thermal breaks

  • Aesthetics

    Sleek, modern look with slim profiles

  • Environmental Impact

    Recyclable; lower carbon footprint

uPVC
  • Durability

    Moderate; can degrade over time

  • Maintenance

    Low; easy to maintain

  • Energy Efficiency

    High; good insulation properties

  • Aesthetics

    Limited color options; bulkier frames

  • Environmental Impact

    Less eco-friendly; not easily recyclable

Timber
  • Durability

    Moderate; susceptible to rot and pests

  • Maintenance

    High; needs regular painting or staining

  • Energy Efficiency

    High; natural insulator

  • Aesthetics

    Classic appearance; customizable

  • Environmental Impact

    Sustainable if sourced responsibly

“

We just had a back security door and double-glazed sliding door put in from DLG. From start to finish such an easy and quick process. Dave, the installer, was so professional and left the job so clean; it was better than before he came. Would highly recommend DLG and will use them again.

Manny

Ladies in the office were extremely helpful and understanding. Guys out the back did a beautiful job.

Ngaire

Incredible Service – the dedication to getting things right from the get-go by David is what convinced me to go with DLG and I was not disappointed – we replaced almost every window in the house and the end result looks sublime! Nothing was too much trouble for David, he was prompt, friendly & professional and did an amazing job working around cats and windows of all shapes and sizes! If you’re looking for top-notch service and premium results, DLG is the way to go!

Sarah

Why choose us

Unrivaled craftsmanship with lasting quality, modern design, and eco-friendly solutions

Australian standard compliant

Every DLG product meets or exceeds Australian standards, ensuring top quality, safety, and durability for peace of mind with every installation.

Energy efficiency

Our energy-efficient windows and doors reduce costs and environmental impact, offering double glazing and thermal insulation for a comfortable, eco-friendly space.

Unmatched Expertise

With a team of nearly 50 skilled professionals, some with over 40 years of experience, we bring unparalleled knowledge and precision to every project.

Award-Winning Excellence

With multiple industry accolades under our belt, we’re recognised for our innovation, design, and craftsmanship.

Browse projects

Discover how our Residential Sliding Windows have transformed spaces across various projects. From modern homes to commercial builds, browse our portfolio to see these versatile windows in action, delivering sleek design, smooth functionality, and energy-efficient performance.

View all projects
  • Budgong House DLG Aluminium project living space
    • Residential
    Budgong House
    • Commercial
    Learning, Light & Lifestyle
    • Commercial
    Mercy Centre
  • Force of Nature Outside View - DLG Aluminium Project
    • Residential
    Force of Nature

Our process

01

02

03

04

05

Show more Show more

Get in touch

Contact us today and get started! Our team are ready to help you choose the perfect solution for your premises. We will ask for for more details and provide an approximate quote

On-site measurement

Our experts will come to you for a precise measurement, hassle-free! Depending on the product, this may happen after the go-ahead as a check measure.

Approval & manufacture

Once you’ve reviewed and approved our quote, our experts start to manufacture your custom product!

Delivery & installation

Schedule delivery or installation at your convienience!

Handover

We handover the project to you and ensure you’re happy with the final product. Your satisfaction is our top priority!

Get a price quotation

Interested in the Series 756 High Performance Awning Window? Request a quote today to receive:

  • Detailed Pricing: Comprehensive breakdown of costs.
  • Customization Options: Information on available sizes, finishes, and features.
  • Installation Details: Timeline and process overview.
  • Warranty Information: Coverage specifics for peace of mind.

Our team is ready to assist you in selecting the perfect windows for your project. Contact us now to get started.
